Probe Styles

Below is a list of all the Ultrasonic Anemometers available from Applied Technologies, Inc., (not including the  New! TriSonica or TriSonica Mini).  This includes the SATI Series and SPAS Commercial anemometers.  The New! TriSonica can be viewed by selecting it from the menu above.

The Ultrasonic Anemometer line is subject to change as features are added, changed or improved.

'A' Style Probe - SATI Series

Ultrasonic Anemometer - "A" Probe

Ultrasonic Anemometer - "A" Probe

This is the newest ultrasonic anemometer in the Meteorological Instruments Product Line.  The Ultrasonic Anemometer offers greater accuracy and reliability than mechanical cups and vanes.  This meteorological instrument is designed for government and educational institutions doing studies in meteorological fields.

 The 'A' style Sonic Anemometer is a 3 axis, 3d, 15 cm, non-orthogonal scientific meteorological instrument that has been designed for applications that require a high range of wind velocity.  The electronics are contained within the probe bar.  It operates on DC power with a power consumption of about 10 ma (depending on options).  This meteorological instrument can be used in many different weather systems for highly accurate wind speed, wind direction and temperature information.

The new design incorporates leveling and vibration monitoring capabilities.

See more info here...

'K' Style Probe - SATI Series

Ultrasonic Anemometer - "K" Probe

Ultrasonic Anemometer - "K" Probe

The 'K' style Sonic Anemometer is a 3 axis, 3d, 15 cm, scientific Ultrasonic Anemometer that has been designed for atmospheric boundary layer studies. The design of this probe minimizes flow distortion errors.  The electronics are contained within the probe bar. It operates on DC power with a power consumption of about 10 ma (depending on options).  This meteorological instrument can be used in many different weather systems for highly accurate wind speed, wind direction and temperature information.

These instruments have been established for use in Eddy Covariance work, which includes Momentum Fluxes, Latent Heat Fluxes and Sensible Heat Fluxes.

The new design incorporates leveling and vibration monitoring capabilities.

See more info here...

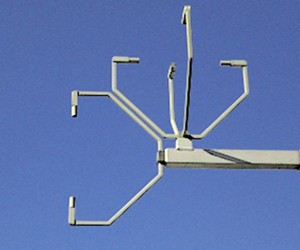

'Sx' Style Probe - SATI Series

Ultrasonic Anemometer - "Sx" Probe

Ultrasonic Anemometer - "Sx" Probe

The 'Sx' style Ultrasonic Anemometer is a 3 axis, 3d, 15 cm, scientific Ultrasonic Anemometer that has been designed for environmental monitoring where the horizontal wind measurements are required to be in the same plane.  The W component measurement on the upwind side of the probe provides the most accurate and unobstructed value of vertical winds.  The electronics are contained within the probe bar. It operates on DC power with a power consumption of about 10 ma (depending on options). This meteorological instrument can be used in many different weather systems for highly accurate wind speed, wind direction and temperature information.

These instruments have been established for use in Eddy Covariance work, which includes Momentum Fluxes, Latent Heat Fluxes and Sensible Heat Fluxes.

The new design incorporates leveling and vibration monitoring capabilities.

See more information here...

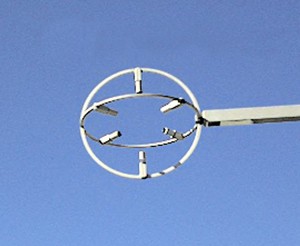

'V' Style Probe - SATI Series

Ultrasonic Anemometer - "V" Probe

Ultrasonic Anemometer - "V" Probe

The 'V' style Ultrasonic Anemometer is a 3 axis, 3d, 10 cm, scientific Ultrasonic Anemometer that is a special design for turbulence, where eddy measurements must be the smallest, for flux measurements in plant and forest canopies where wind speeds are very low and directions are highly unpredictable. The electronics are contained within the probe bar. It operates on DC power with a power consumption of about 10 ma (depending on options). This meteorological instrument can be used in many different weather systems for highly accurate wind speed, wind direction and temperature information.

These instruments have been established for use in Eddy Covariance work, which includes Turbulent Fluxes, Momentum Fluxes, Latent Heat Fluxes and Sensible Heat Fluxes.

The new design incorporates leveling and vibration monitoring capabilities.

See more info here...

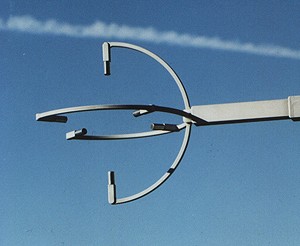

'Vx' Style Probe - SATI Series

Ultrasonic Anemometer - "Vx" Probe

Ultrasonic Anemometer - "Vx" Probe

The 'Vx' style Ultrasonic Anemometer is a 3 axis, 3d, 15 cm, scientific Ultrasonic Anemometer is a compact design for flux measurements in plant and forest canopies where wind speeds are very low and directions are highly unpredictable. The electronics are contained within the probe bar. It operates on DC power with a power consumption of about 10 ma (depending on options). This meteorological instrument can be used in many different weather systems for highly accurate wind speed, wind direction and temperature information.

These instruments have been established for use in Eddy Covariance work, which includes Turbulent Fluxes, Momentum Fluxes, Latent Heat Fluxes and Sensible Heat Fluxes.

The new design incorporates leveling and vibration monitoring capabilities.

See more info here...

'SPAS' Commercial

Ultrasonic Anemometer - SPAS

Ultrasonic Anemometer - SPAS

The 'SPAS/2Y' style Sonic Anemometer is a 2 axis, 2d, 15 cm, commercial Ultrasonic Anemometer. This sensor offers high quality performance in an inexpensive package.  The electronics are contained within the probe and a single cable connects it to your PC.  This sensor can provide the same accuracy and resolution of the scientific Ultrasonic Anemometer, with the exception of the mechanical direction. This probe is designed to meet the needs of commercial users, and is priced in a range that is between the two.  It operates on DC power with a power consumption of about 10 ma (depending on options).  This meteorological instrument can be used in many different weather systems for accurate wind speed, wind direction and temperature information.

For more information about the 'SPAS' style Ultrasonic Anemometer please download the PDF brochure from here.
